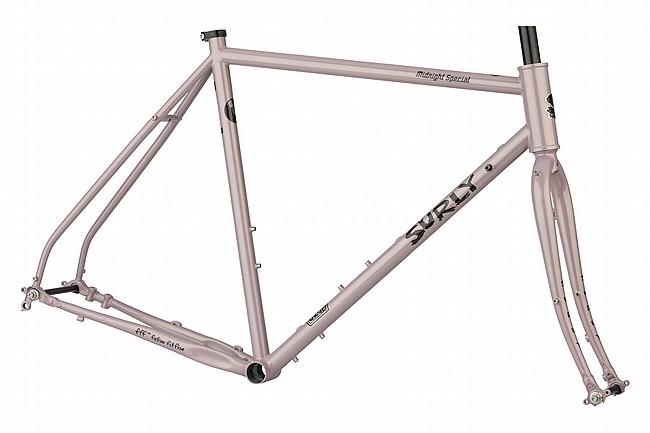

Surly Midnight Special Frameset

Description

Make Your Midnight Extra Special

The Surly Midnight Special Frameset is the centerpiece to the steel build of your dreams for all-road, gravel, light-touring, and more.

Features:

• Higher volume tires allow better fine-tuning of tire pressure on varying surfaces and create a wider contact patch for increased traction
• Modern road standards like flat-mount disc brakes, 12mm front and rear thru-axles, and a 44mm head tube
• Clearance for 650b x 60mm or 700c x 42mm tires without fenders (650b x 50mm or 700c x 38mm with fenders)

Specs:

• Frame Construction: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
• Fork Construction: 4130 Chromoly, Natch tubing, TIG welded, brazed lugs, ED coated
• Rear Dropout Configuration: Vertical
• Rear Hub Spacing: 12 x 142mm (Surly axle included), 10 x 135mm with Surly 10/12 Adapter Washers (not included)
• Front Hub Spacing: 12 x 100mm (Surly axle included)
• Rear Brake: Disc - Flat Mount (160mm max rotor) – 25mm thick mount / 32mm bolt length
• Front Brake: Disc - Flat Mount (160mm max rotor) – Use Brake Manufacturer's Front Flat Mount Adapter and Supplied Bolts
• Head Tube: ∅44mm
• Steerer Tube: ∅28.6mm (1-1/8")
• Crown Race: ∅30mm (1-1/8")
• Stock Headset Upper (S.H.I.S.): ZS44/28.6
• Stock Headset Lower (S.H.I.S.): EC44/30
• Seat Collar: ∅30mm
• Seatpost: ∅27.2mm
• Front Derailleur (Clamp): Bottom-pull (∅28.6mm)
• Max Chainring (CL): 1x (Road): 44T, 2x (Road): 34/50T, 3x (Road): 30/39/50T
• Bottom Bracket: 68mm threaded (1.37" x 24TPI)
• Tire Clearance Frame: 27.5 x 2.35" (w/o fenders), 700c x 42mm (w/o fenders), 650b x 50 (w/ fenders), 700c x 38mm (w/ fenders)
• Tire Clearance Fork: 27.5 x 2.35" (w/o fenders), 700c x 42mm (w/o fenders), 650b x 50 (w/ fenders) 700c x 38mm (w/ fenders)
• Rigid Fork Spec: 400 x 50mm (40 - 54cm), 400 x 40mm (56 - 64cm)
• Bottle Mounts Frame: 3 Standard
• Rack Mounts Frame: Yes (upper and lower threaded)
• Rack Mounts Fork: Yes (upper, lower, and mid-blade threaded)
• Fender Mounts Frame: Yes
• Fender Mounts Fork: Yes
• Downtube mounted shifter bosses (cable housing stops not included with frameset)
