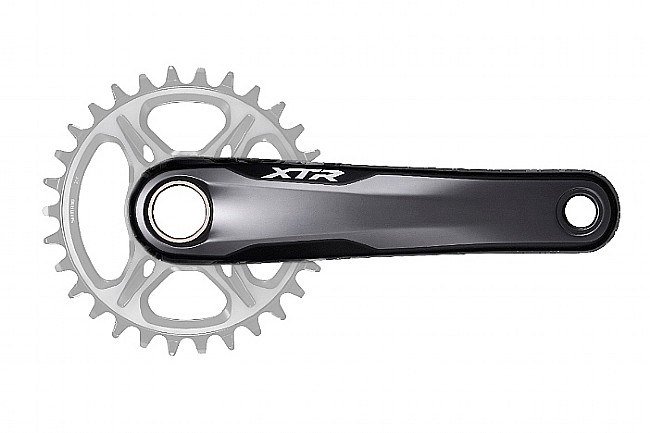

Shimano XTR FC-M9130 Crank Arms

Description

The Strongest, Lightest MTB Cranks Shimano Can Make

At the forefront of Shimano's 12-speed mountain groups is XTR, which is the most lightweight version they can manufacture. The Shimano XTR FC-M9130 Crank Arms are a key element in this system, contributing to the group's strength and overall weight.

The Shimano XTR FC-M9130 crank arms feature an entirely new construction, direct mount chainrings, a special gear tooth profile for improved chain retention, and a narrow 171 mm Q-factor. The FC-M9130-1 also uses a 56.5 mm chain line and can be converted between 1x and 2x. The Shimano XTR FC-M9130 Crankarms come in 165, 170, and 175 mm lengths.

Features

• Superior chain retention for smoother driving even over rough terrain
• Special MTB gear teeth profile improves chain engagement and retention
• Rigid and lightweight design for trail riding with direct mount chainring
• Average weight with chainring: 577g (34T) 563g (32T) 560g (30T)
• Chain line (mm): 56.5
• Compatible chain: HG 12-speed
• Crank fixing bolt included
• Spider/Gear arms: 4
• Hollowtech II Technology
• P.C.D. (mm): Direct
• Rear speeds: 12
• Recommended bottom bracket: Press-fit SM-BB94-41A
• Recommended bottom bracket: Threaded (normal) SM-BB93
• Q-factor (mm): 171
• Chain line (mm): 56.5
• Compatible chain: HG 12-speed
• P.C.D. (mm): Direct
• Rear speeds: 12
• O.L.D. Thru (mm): 157
