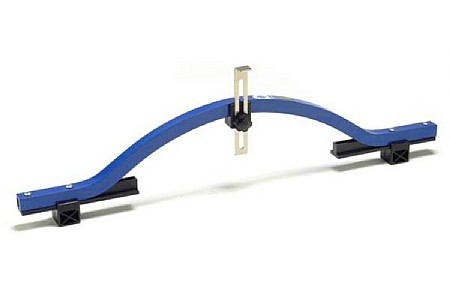

Park Tool WAG-4 Wheel Alignment Gauge
Click Here for Larger Image
Park Tool WAG-4 Wheel Alignment Gauge 1
PLAY VIDEO

Park Tool WAG-4 Wheel Alignment Gauge

(4)

Pricing and Order Section

Mfg PartNum: WAG-4
$61.95
MSRP: $61.95
That's off
In Stock
Ships Free!
Earn $3.72 in VIP credit. Click to Learn More.
372
POINTS
This color/size is not eligible for VIP points
Price matches are is not eligible for VIP points


Description

The Proper Dish

For a wheel to perform properly, it is important for the rim to be centered between the locknuts of the hub, or "dished." To check this, and to make precision adjustments, the Park Tool WAG-4 Wheel Alignment Gauge (also called a "dishing tool") is a must. An accurate and truly versatile wheel alignment gauge that belongs alongside every truing stand.

The Park Tool WAG-4 comparatively measures the distance from the rim to end of the hub locknut on each side of the wheel. One can then accurately dish the wheel so that the rim lies in the center of the hub. This is especially difficult to eyeball on rear wheels or disc wheels where the rim does not center between the hub flanges. Compatible with 16 Inch to 29 Inch wheels (ISO 305 to 630). The WAG-4 can be used with the tires mounted or removed.

Features:

  • The WAG-4 allows easy checking of the dish on road, mountain, or BMX wheels from 16" to 29" (ETRTO or ISO rim sizing of 305-630)
  • Works with any hub width
  • Can be accurately used with the tire still on the wheel
  • Made in the USA

B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.

The product weight specified is an approximate weight based on the manufacturer's specifications (if available) or our measurement of one or two examples. For most products, the weight will typically vary by 5% to 10%.

Specifications

Weight: 1000 grams

Mfg PartNum: WAG-4

Reviews

Ordered by Most Relevant First
5 stars
4 stars
3 stars
2 stars
1 stars
(4)
(0)
(0)
(0)
(0)
(100%)
(0%)
(0%)
(0%)
(0%)
Reviewed 6/4/2023
by Maj
Cycling Enthusiast
San Diego
Value Rating
Overall Rating
I needed this WAG years ago.

I have maxxis 2.6 fives on my wheel and this instrument worked perfect for the fat tires.

Was this review useful to you? Yes/No
Thank you for your feedback.
Reviewed 3/16/2014
by Donald T.
Cycling Enthusiast
Beaverton, OR
Value Rating
Overall Rating
High quality and easy to use.

I have used many different wheel alignment gauges through almost 20 years of working in shops. This type is easy to use with the sliding center axle gauge, and will work well even with the tires mounted! I have used some with a screw type gauge, (Campy) but this is faster and easier! Also, to not have to take the tire off in order to get a precise alignment is a plus! Quality by Park. I only purchase higher priced tools, because over the years the extra enjoyment of using them and the precision I am able to get more than pay for the few extra dollars I spend. Of course, I bought this on sale from Bike Tires Direct, so the price was competitive. I added it to a Continental tire order to get an extra discount.

Was this review useful to you? Yes/No
Thank you for your feedback.
Reviewed 6/15/2018
by Charles
Cycling Enthusiast
Houston, TX
Value Rating
Overall Rating
Must have to dish wheels

Its a simple tool - easy to adjust for any diameter rim. Make sure you dish your custom build correctly. Takes the guess work out of it. Even my Park TS 2.2 truing stand is not exact.

Was this review useful to you? Yes/No
Thank you for your feedback.
Reviewed 3/3/2018
by Camaro mike
midwest
Overall Rating
Great product

Another great park tool
