Built to Win

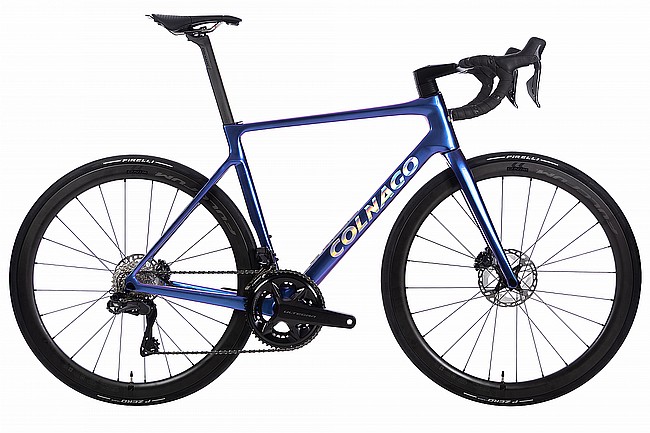

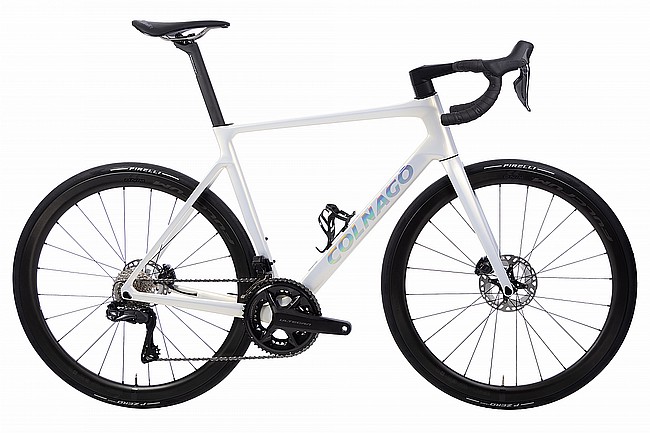

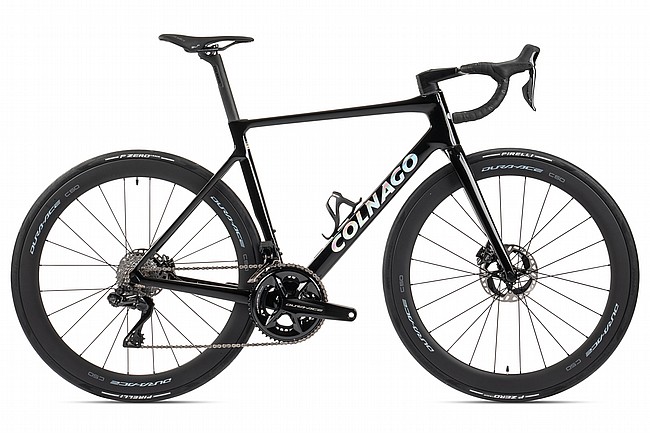

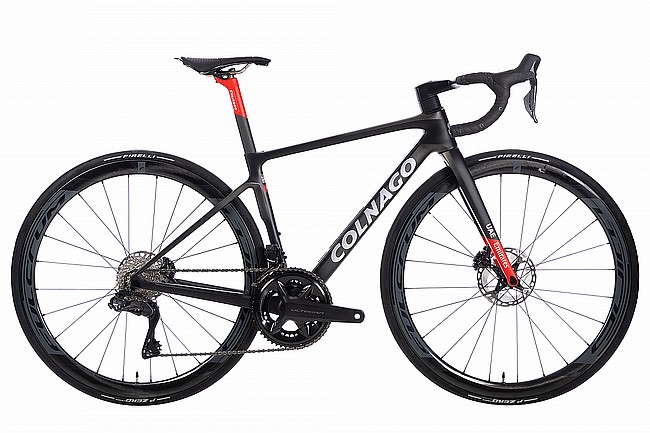

The Colnago V4Rs Ultegra Di2 has been engineered and built to do just one thing: win. The Colnago V4Rs is the results of years of research and tests in the World Tour with improved stiffness, better aerodynamics, and decreased weight.
A winning bicycle must be stiff, light, aerodynamic, comfortable and robust. The V4Rs is today's best road bike via a mix of all these characteristics.
Stiff, Responsive, Light, Aero, Simple

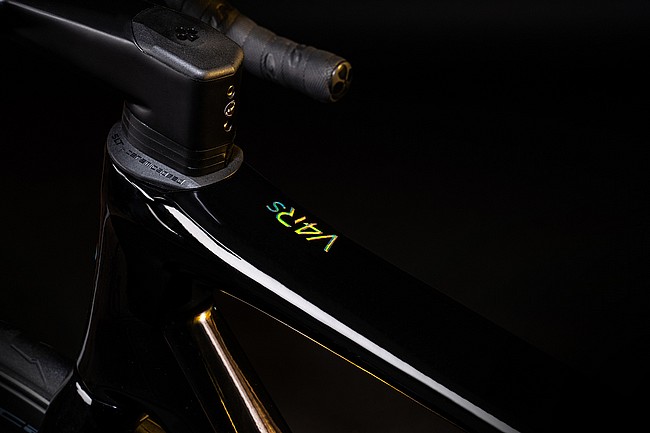

The V4Rs has unique carbon laminations, designed and tested with particular attention to the areas of the frame most subject to tension. Pedaling power is transmitted to the frame immediately and effectively, more than any other bike in the World Tour. The front area of the bike has been optimized with lines that follow and facilitate airflow. The V4Rs is the bike you want to be on when you are alone, in a breakaway, on your way to victory.

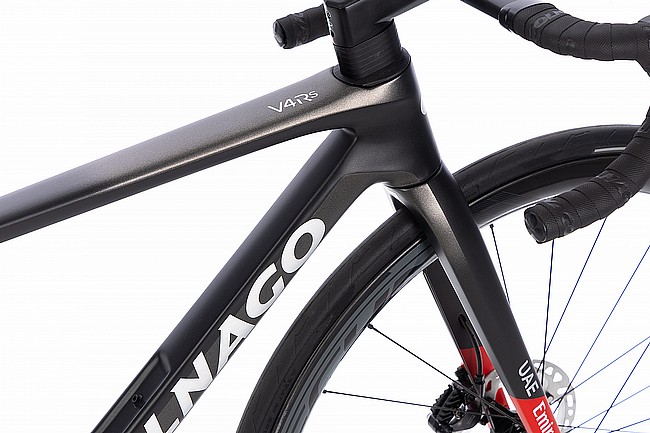

The lightened and revised fork makes the bike much more rideable downhill, in groups and on technical courses. The headset bearings are treated with Ceramic Speed's SLT technology, which virtually cuts out the need for any maintenance during the life of the product
Fitting is made easier since the increase in reach and stack between the different geometries is linear, enabling any rider to find the perfect riding position.
Colnago uses actual seatube length for their size measurement. Please use the geometry chart to determine the correct size. If you have any questions please feel free to contact us and our Customer Service team will be happy to help you determine your proper size.
Features:

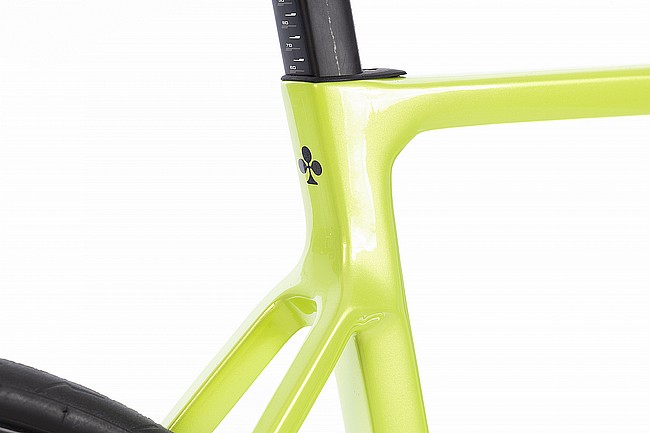

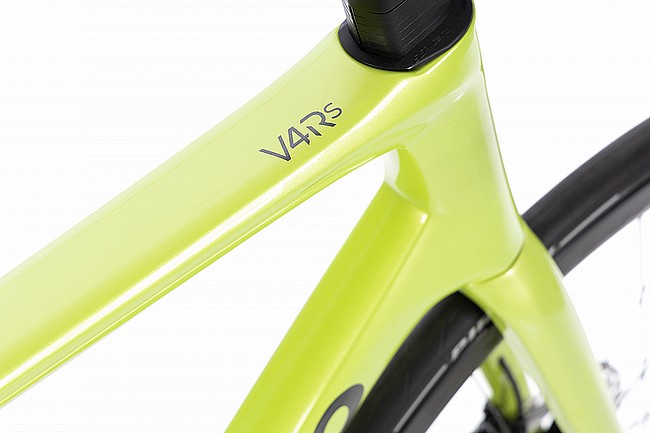

- Frame (material): Colnago V4Rs Monocoque carbon frame
- Fork (material, section notes): Carbon fork for disc brakes, integrated cables, 1"1/8 section, steerer tube expander plug with hidden tool
- Headset: ID:35 OD:47 36°/45° CeramicSpeed SLT Treated Bearings

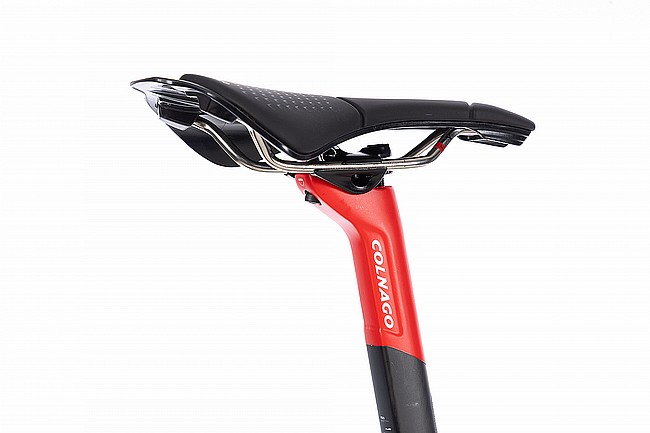

- Seatpost: Carbon seatpost, 0.15 offset, "D-Shape" section
- Through axles: Diameter: 12 mm. length 100 mm (front) - 142 mm (rear)
- Weight: Size 485 unpainted frame: 798g
- Maximum tire size: 32mm
- Shifting system: Shimano Ultegra R8170 Di2 Disc - 12v
- Front derailleur: Shimano FD-R8150
- Rear derailleur: Shimano Shadow RD-R8150
- Chain: Shimano CN-M8100 12V
- Chainrings: 52-36T
- Cassette: 11-30T
- Bottom bracket: T47 Shimano with Steel Bearings
- Crank length: Sizes 420 - 485: 170 mm, Sizes 510 - 530: 172.5 mm, Sizes 550 - 570: 175 mm
- Brakes: Shimano Ultegra R8170, 160 mm Front / 140 mm Rear, RT-CL900 rotors
- Disc size: 160 mm Front / 140 mm Rear - RT-CL800 rotors
- Brake lever: Shimano ULTEGRA ST-R8170
- Brake caliper: Standard Flat Mount
- Fulcrum Racing Wind 420 DB
- Material: Carbon (FF80)
- Rim height: 42 mm
- Internal channel width: 23 mm
- Hubs: Aluminum, Low flanges. Sealed bearing, Adjustable
- Through axles: Front: HH12-100, Rear: HH12-142
- Tires: Pirelli PZero Race 700x28
- Saddle: Scratch M5 Nack 140 Hard Black, Selle Italia Novus Boost EVO TI316 Superflow (subject to stock availability)
- Handlebar: Colnago CC.01 integrated Cockpit - regular geometry
- Stem: CC01 integrated cockpit
- Handlebar Tape: Colnago Grip Black
- Bottle cage: Colnago Matte Black (1x)
- Other accessories: Cockpit integrated multitool
Frameset
Drivetrain
Brakes
Wheels
Components
Returns: This product is overweight and/or oversize and does not qualify for our fixed rate return shipping label. If you need to return this item, we can offer a return shipping label at our discounted shipping rates, or you can arrange for your own return shipping.
Overweight shipping charges apply for this item so shipping promotions for other products may not apply. To get a shipping quote, add the item to your shopping cart and click the Get Shipping Quote button.
B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.
No International Shipping. The manufacturer of this product does not allow us to ship outside the United States and U.S. Territories except to US diplomatic and military base addresses (APO/FPO).
Please note: This product ships signature required.
Specifications
45.5cm - Black/Chrome | Mfg PartNum: 1CCL.V4S.0TU.U2E.W42.455.RVBO |
48.5cm - Black/Chrome | Mfg PartNum: 1CCL.V4S.0TU.U2E.W42.485.RVBO |
51cm - Black/Chrome | Mfg PartNum: 1CCL.V4S.0TU.U2E.W42.510.RVBO |
53cm - Black/Chrome | Mfg PartNum: 1CCL.V4S.0TU.U2E.W42.530.RVBO |
55cm - Black/Chrome | Mfg PartNum: 1CCL.V4S.0TU.U2E.W42.550.RVBO |
57cm - Black/Chrome | Mfg PartNum: 1CCL.V4S.0TU.U2E.W42.570.RVBO |
45.5cm -White/Chrome | Mfg PartNum: 1CCL.V4S.0TU.U2E.W42.455.RVWO |
48.5cm -White/Chrome | Mfg PartNum: 1CCL.V4S.0TU.U2E.W42.485.RVWO |
51cm -White/Chrome | Mfg PartNum: 1CCL.V4S.0TU.U2E.W42.510.RVWO |
53cm -White/Chrome | Mfg PartNum: 1CCL.V4S.0TU.U2E.W42.530.RVWO |
55cm -White/Chrome | Mfg PartNum: 1CCL.V4S.0TU.U2E.W42.550.RVWO |
